CW3 / CW4 Converter Welder

The ATI CW3 Converter Welder removes all the aggravation, eliminates all the guesswork and produces a perfectly true, leak-proof converter far superior to OEM quality—one that you will be proud to sell and confident to use!

The CW3 has complete tack speed control, and allows for “rolling” tacks—which are completely covered by the final weld bead. This makes for a better quality weld, and eliminates the leaks that come from stationary tacks.

Some welding machines attempt to defy gravity by requiring the weld to be above the torch. ATI’s proven CW3 rotates 90° so the operator can always weld with the torch facing down, which allows the bead to “lay in” properly. The CW3 positions the converter at a 45° angle, which makes for an ideal weld.

The rotational speed of the converter as it’s being welded is crucial. Different converters require different weld speeds—and that’s why the CW3 offers five selectable speed settings, with each of them independently adjustable.

Converter-to-converter consistency is assured through the CW3’s use of a 6-jaw chuck instead of a collet. GM engineers have confirmed that this is the only method they know of that will provide repeatability in the welding process.

ATI's new CW4
Welder now available!

5" more swing and can
accommodate a 2" taller
converter than the CW3!

Features

•	Fixture, clearance and weld torque converters in 2 minutes or less.
•	Welds with the torch face down, parallel to the floor, to allow the bead to “lay in” properly.
•	Rotates 90° so that even Chrysler converters can be welded with the torch facing down.
•	Multiple weld speeds to accommodate a variety of converter sizes.
•	Rotates to keep weld bead parallel to the floor
•	Patented coupler allows for super-accurate, and independent alignment of concentric and perpendicular planes
•	3” diameter moving face plate shaft
•	2-1/2” diameter spindle mounted on Torrington cup & cone rollers
•	Solid state SCR-controlled gear drive assembly
•	Converter run-out is less than .005” hub to pilot
•	1 year warranty

Download Product Brochure

Tooling & Training

CW3 Overhaul Program

Hub Welding Fixture - 991450

CW3 Small Parts Kit (included)

Description	Part No.	Price
CW4 Converter Welder - less Power Supply and Wire Feeder CW3 Converter Welder - less Power Supply and Wire Feeder CW3 Hub Welding Fixture Tooling and Training Package Tooling Package Only CW3 Bodine Motor Retro Fit Kit - includes template and hardware	990000L-1 990000-1 991450 995020 995021 994055	$29,950 $24,950 $549 $15,900 $10,500 $495

CW3 Shipping Weight: 810 lbs. - 33" x 78" x 38"
CW3 Power Requirements: 230V - 3 Ø - 30A
CW3 Power Supply 967110: 375 lbs - 31" x 48" x 37"

CW4 Shipping Weight: 915 lbs. - 30" x 72" x 38"
CW4 Power Requirements: 1 Phase or 3 Phase
CW4 Power Supply 967110: 375 lbs - 31" x 48" x 37"

Loading the machine

Preparing the welder

Welding the converter

Unloading the machine

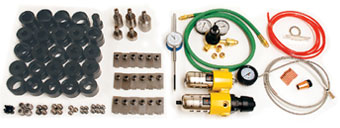

CW3 Small Parts Kit

1	954140	Cover Spacers - 1/2" long (Set of 4)
1	990330	Audi Hub Adapter
1	990340-2	Ford Cover Stud Spacers (Set of 4)
1	990380	Cover Spacers - 3/8" long (Set of 4)
1	990381	Cover Spacers - 5/8" long (Set of 4)
1	990382	Cover Spacers - .103" long (Set of 3)
1	990383	Cover Spacers - .300" long (Set of 4)
1	990384	Cover Spacers - 618 Chrysler (Set of 6)
1	990620B	Front Wheel Drive Chuck Jaw Spacers (Set of 6)
1	990630B	Front Wheel Drive Chuck Jaw Spacers (Set of 6)
1	990660B	Front Wheel Drive Chuck Jaw Spacers (Set of 6)
1	990670B	Front Wheel Drive Chuck Jaw Spacers (Set of 6)
1	990280	Cover Pusher with Bearing and O-Ring
1	990290	Cover Pusher with Bearing and O-Ring
1	990300	Cover Pusher with Bearing and O-Ring
1	990310	Cover Pusher with Bearing and O-Ring
1	990320	Cover Pusher with Bearing and O-Ring
1	990210	Dial Indicator, Extension
1	991345	Magnetic Base - Screw-on
1	991349	Extension
1	968000	10' 1/4" Air Line

10	967053	Torch Contact Tips
1	967051	Torch Cup
1	967056	Torch Liner
1	990481	Pilot Bushings (Set of 26)
		990480-C2	990480-G3
		990480-C2S	990480-H1
		990480-C3	990480-HY1
		990480-C4	990480-J1
		990480-F1	990480-M1
		990480-F2	990480-N1
		990480-F3	990480-R1
		990480-F4	990480-S1
		990480-F5	990480-S2
		990480-F6	990480-T1
		990480-F7	990480-T2
		990480-F8	990480-V1
		990480-G2	990480-ZU1
1	990480-C1	Pilot Bushing (optional)
1	990480-H2	Pilot Bushing (optional)
1	990480-VN1	Pilot Bushing (optional)
