Home > Products > Super Dampers > Diesel Super Dampers

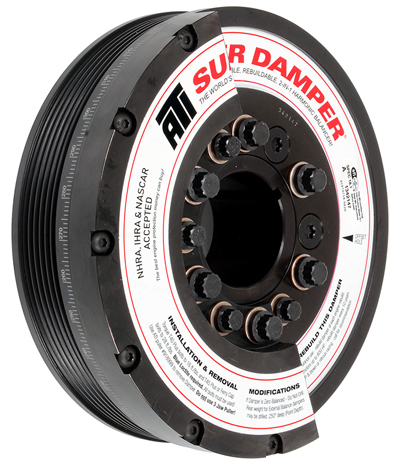

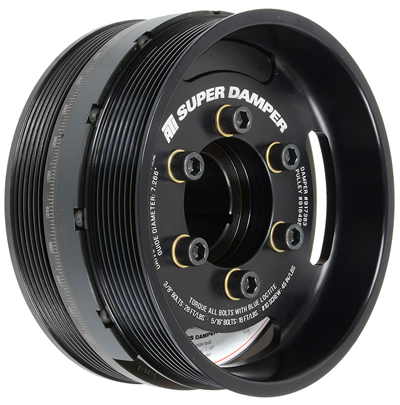

Super Damper® Harmonic Dampers




 Diesel Super Dampers


Trusted by top shops like SoCal Diesel, Pure Diesel, East Coast Diesel, Diesel Innovations, Power Products Unlimited & more! Whether you have a mildly tuned street 5.9L Cummins or a 700” International Sled Puller, ATI has a damper to fit your needs. At ATI we’ve been building elastomer Super Dampers for nearly 30 years and we know how to build them right. ATI Diesel Dampers range from 6” to 10” in diameter and weigh between 10 to 36 lbs. They are tuned in-house to fit your exact application, and if you make a change, your Super Damper can change too. Each part is replaceable and rebuildable. No need to replace your entire damper at service intervals or if something happens. Don’t be fooled, treat your diesel engine like the professionals do, with an ATI Super Damper!

How much power do you make?

Damper Accessories
Installation Instructions




Chevy Duramax Diesel Dampers
ENGINE
DAMPER
PART #
OUTER
DIAMETER
WEIGHT
SHELL
MATERIAL
RINGS
HUB #
HUB
MATERIAL
NEUTRAL BALANCE
'01-'16, 6 RIB
7.425"
19 lbs
STEEL
3
916081
STEEL
6.6L - 6 RIB
LML & LGH
('11-'16) - EX. BAL
7.425"
19 lbs
STEEL
3
916081
STEEL
6.6L - 6 RIB
LBZ ('06-'07)
LMM ('07-'10) - EX. BAL
7.425"
19 lbs
STEEL
3
916081
STEEL
6.6L LB7 & LLY
6 RIB '01-'05 - EX. BAL
7.425"
19 lbs
STEEL
3
916081
STEEL
6.6L L5P
6 RIB '17-'19 - EX. BAL
7.425"
19 lbs
STEEL
3
916494
STEEL
6.6L L5P
6 & 8 RIB '20-'23
EX. BAL [13]
7.425"
19 lbs
STEEL
3
916494
STEEL

[13] Includes 8 Rib Pulley Drive, ATI Part #916495



Cummins Diesel Dampers
ENGINE
DAMPER
PART #
OUTER
DIAMETER
WEIGHT
SHELL
MATERIAL
RINGS
HUB #
HUB
MATERIAL
5.9L 6BT - '92-'98
2 TIMING SLOTS
FOR TACH [5]
8.074"
23 lbs
STEEL
3
916014 [2]
STEEL
4BT / 6BT [1]
'89-'91, '98.5-'02
8.074"
20 lbs
STEEL
3
916014 [2]
STEEL
5.9L ( '03-'07-1/2)
7.98"
18 lbs
STEEL
3
916119
STEEL
+2007.5 6.7L 8-RIB
TRIGGER WHEEL [6]
8.075"
19 lbs
STEEL
3
916138
STEEL
ISC 8.3L [3]
STRAIGHT 6
'97 - '04
7.95"
21 lbs
STEEL
3
916083
STEEL
917372 REPLACES THE OEM RUBBER STYLE DAMPER FOR CUMMINS ENGINES BEWTEEN 10/1997 TO 4/2004 - C8.3, ISC CM2150, 6L8.9, ISC8.3 CM2250, ISL G CM2180, QSL9 CM2250, QSC8.3 CM554, ISL9 CM2250, QSL9 CM554, 6C, QSL9 CM850, C Gas Plus CM556, C8.3G, G8.3, L Gas Plus CM556, ISC CM554, QSC8.3 CM2250, QSL9 G CM558, ISC CM850, ISL CM554, QSC8.3 CM850, ISL CM2150, ISL CM2150 SN, ISL CM850, GTA8.3 CM558
[2] Requires a modified hub for competition, #916014M
[3] OEM service calls for 2 year replacement!
[5] Damper OD is 9.254”. OEM tach sensor may be relocated from 11 o’clock to 3 o’clock. Order ATI bracket kit #917373BKT ($100).
[6] Shell assembly 917114 includes 8 groove trigger wheel.



Damper Accessories
Download Installation Instructions
Cummins Onan Isuzu Diesel Generator Dampers
  • Fits Cummins Onan Isuzu 3.1LD1 3-cylinder diesel engines found in Cummins Onan 12.5 KW Generators
  • OEM replacement for Cummins Onan Crankshaft Pulley Part #512-0261 and Isuzu Part #8-97226831-0
  • Dampens torsional crankshaft vibrations at all RPM levels
  • Protects against engine harmonics
  • Engraved TDC timing mark
  • SFI 18.1 Certified
Specs
  • Shell Material: 4.93" Steel, single V-belt drive
  • Hub Material: Steel 916805
  • Inertia Weight: 2 ring
Part #
 Diameter Weight Price Purchase
4.930" 5.20 LBS $292.50


Ford Power Stroke Diesel Dampers
ENGINE
DAMPER
PART #
OUTER
DIAMETER
WEIGHT
SHELL
MATERIAL
RINGS
HUB #
HUB
MATERIAL
6.7L ( '11 - present)
918892
7.95"
17.7 lbs
STEEL
3
916775
STEEL
6.4L ( '08 - '10)
918887 [7]
8.48"
26 lbs
STEEL
3
916764
STEEL
6.0L ( '03 - '07)
7.95"
16 lbs
STEEL
3
916761
STEEL
F-250/350 - 7.3L
( '99 - '03) - EXT. BAL
7.10"
STEEL
5
916754L
STEEL
F-250/350 - 7.3L ( '99 - '03)
7.45"
15 lbs
STEEL
3
916754
STEEL

[4] Requires front pulley #916118 for dual alternator.
[7] Drive pulley - #916162.
[11] Damper is 12% OD. Use NAPA belt 25-081253.


John Deere Diesel Dampers
ENGINE
DAMPER
PART #
OUTER
DIAMETER
WEIGHT
SHELL
MATERIAL
RINGS
HUB #
HUB
MATERIAL
466 / 619
STANDARD INERTIA
917362 [8]
7.074"
13 lbs
STEEL
3
916015
STEEL
466 / 619 - 6 CYL
HEAVY INERTIA
7.074"
15 lbs
STEEL
3
916015
STEEL
466 / 619 - 6 CYL
HEAVY INERTIA
917364 [8]
8.074"
19 lbs
STEEL
3
916015
STEEL

[8] Timing for a 466 John Deere will line up TDC on the bottom side of the damper at 180° so you will be under the engine to set from the 180° mark. Request a second 1/4” keyway to be cut for topside timing at no additional charge if requested at time of new order. The 619 timing will be set at TDC and straight up at 12 o’clock


Diesel Dampers - Includes International and Oliver
APPLICATION
ENGINE
DAMPER
PART #
OUTER
DIAMETER
WEIGHT
SHELL
MATERIAL
RINGS
HUB #
HUB
MATERIAL
INTERNATIONAL
640
10.465"
36 lbs
STEEL
4
--
STEEL
640 / 466
8.074"
23 lbs
STEEL
3
916013
STEEL
OLIVER
6 Cyl
7.074"
14 lbs
STEEL
3
916008
STEEL

[9] Requires a custom hub. Contact ATI Sales Technician for more information
[12]This damper uses 10" 70 durometer o-rings, part #970400-70
